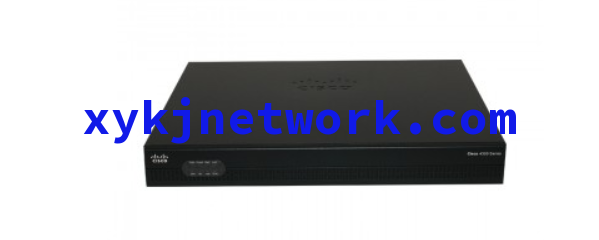

Product Code | Cisco ISR4321/K9 |
Aggregate Throughput | 50 Mbps to 100 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 2 |
RJ-45-based ports | 2 |
SFP-based ports | 1 |
NIM (Network Interface Modules) slots | 2 |
Onboard ISC slot | 1 |
Memory | 4 GB (default) / 8 GB (maximum) |
Flash Memory | 4 GB (default) / 8 GB (maximum) |
Power-supply options | External: AC and PoE |
Rack height | 1 RU |
Dimensions (H x W x D) | 44.55 x 369.57 x 294.64 mm |
Package Weight | 9.19 Kg |
LEDs | Represents | Color | Description |
POE0 | POE PSU | Green | PoE is on and providing power. |
Amber | PoE is in a failed condition. | ||
Off | PoE supply is not present. | ||
FLASH | System Flash Status | Blinking Green | Compact flash/eUSB flash is present and currently being accessed. |
TEMP | Temperature Status | Solid green | All temperature sensors in the system are within acceptable range. |
Amber | One or more temperature sensors in the system are outside the acceptable range. | ||
Off | Temperature is not being monitored. | ||
PWR | System Power | Green | System power is on and functioning correctly. |
Green blinking | System power is in the process of shutting down. | ||
Amber | System power is up, but low level initialization failed. | ||
Amber blinking | System power is up, but the system failed to come out of reset. | ||
Off | System power is off. | ||
SSD | mSATA Slot Status | Green | SSD mSATA is present and enabled. |
Amber | Initialized with error. | ||
Off | Not present. | ||
ISC | ISC Slot Status | Green | PVDM4 is present and enabled. |
Amber | Initialized with error. | ||
Off | Not present. | ||
FAN | Fan Status | Green | All fans are operating. |
Amber | One fan has stopped working. | ||
Blinking Amber | Two or more fans have stopped working, or the fan tray has been removed. | ||
Off | Fans are not being monitored. | ||
STAT | System Status | Solid green | System operating normally. |
Blinking amber | BIOS/Rommon is booting. | ||
Amber | BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software. | ||
Off | System is not out of reset or BIOS image is not loadable. |
