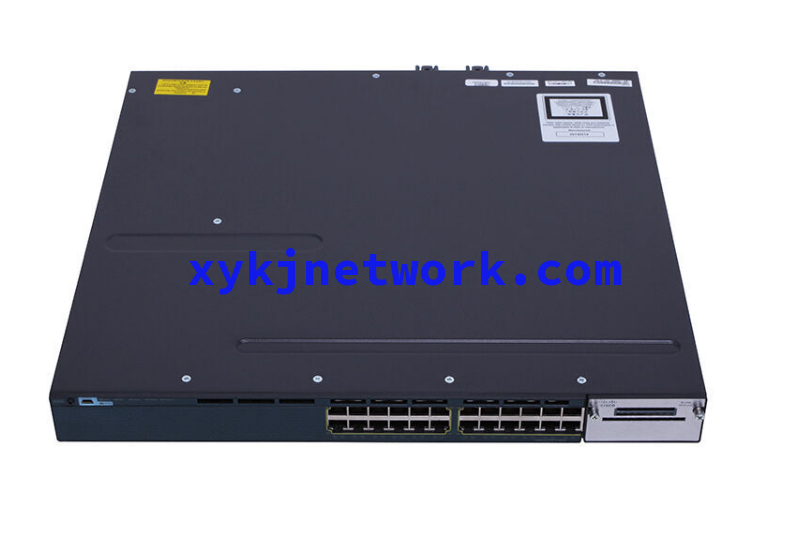

Cisco Catalyst 3650 24 Port Gigabit Ethernet switch WS-C3650-24TS-L

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 4 x SFP

Performance

Switching capacity: 88 Gbps
Forwarding performance: 65.47 Mpps

Capacity

IPv4 routes: 24000
Virtual interfaces (VLANs): 255
Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI

Features

Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

Power

AC 120/230 V (50/60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

44.5 cm x 44.8 cm x 4.4 cm

Weight

6.87 kg
